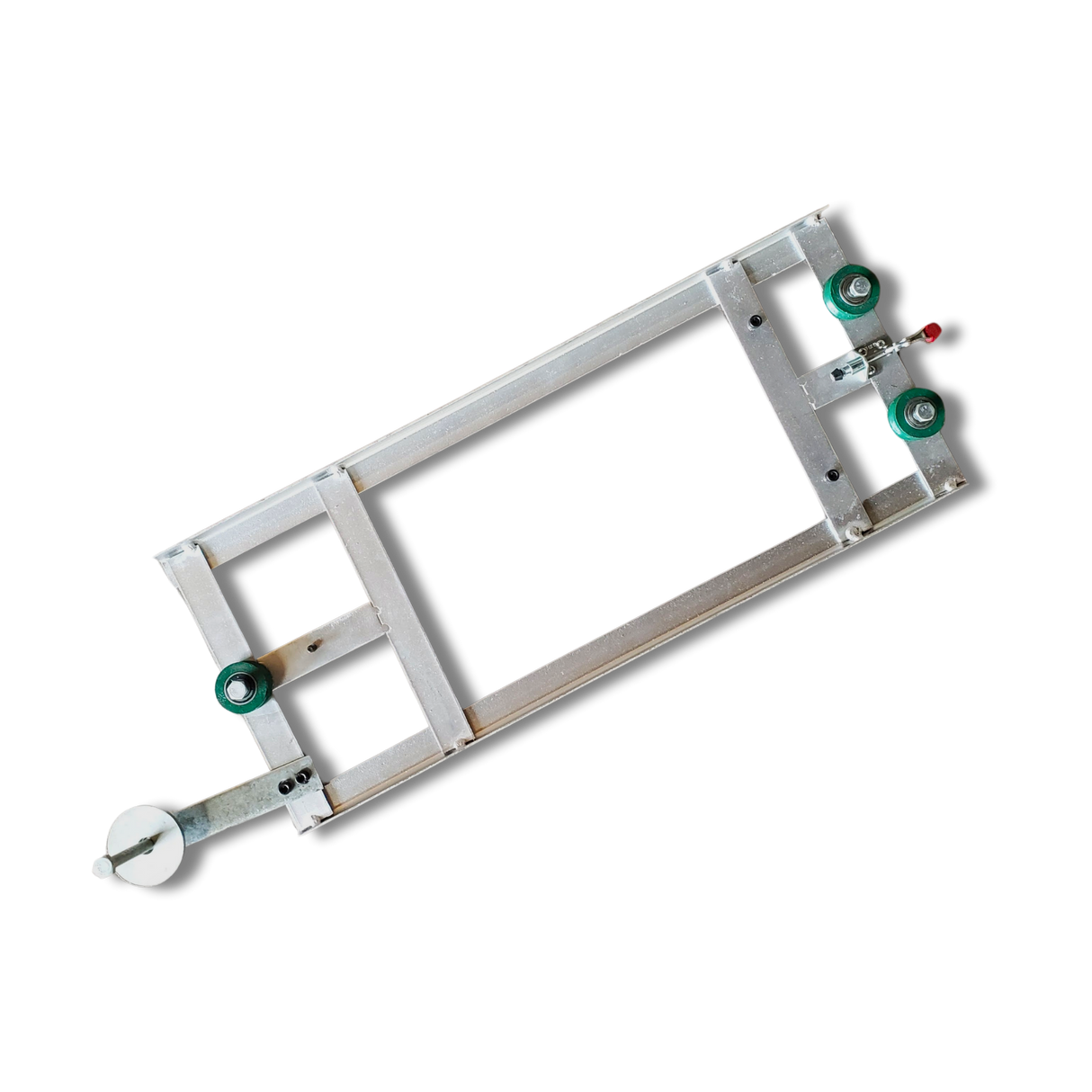

Frame Wiring Jig

Wiring a frame by hand — threading it through the end bar holes and pulling it tight without a guide — is slow and hard to keep consistent. This jig routes the wire through the correct positions automatically and holds it under tension while you work, so every frame comes out evenly wired instead of loose in some spots and tight in others.

Key Features

• Routes wire through the pre-drilled end bar holes in the correct position every time

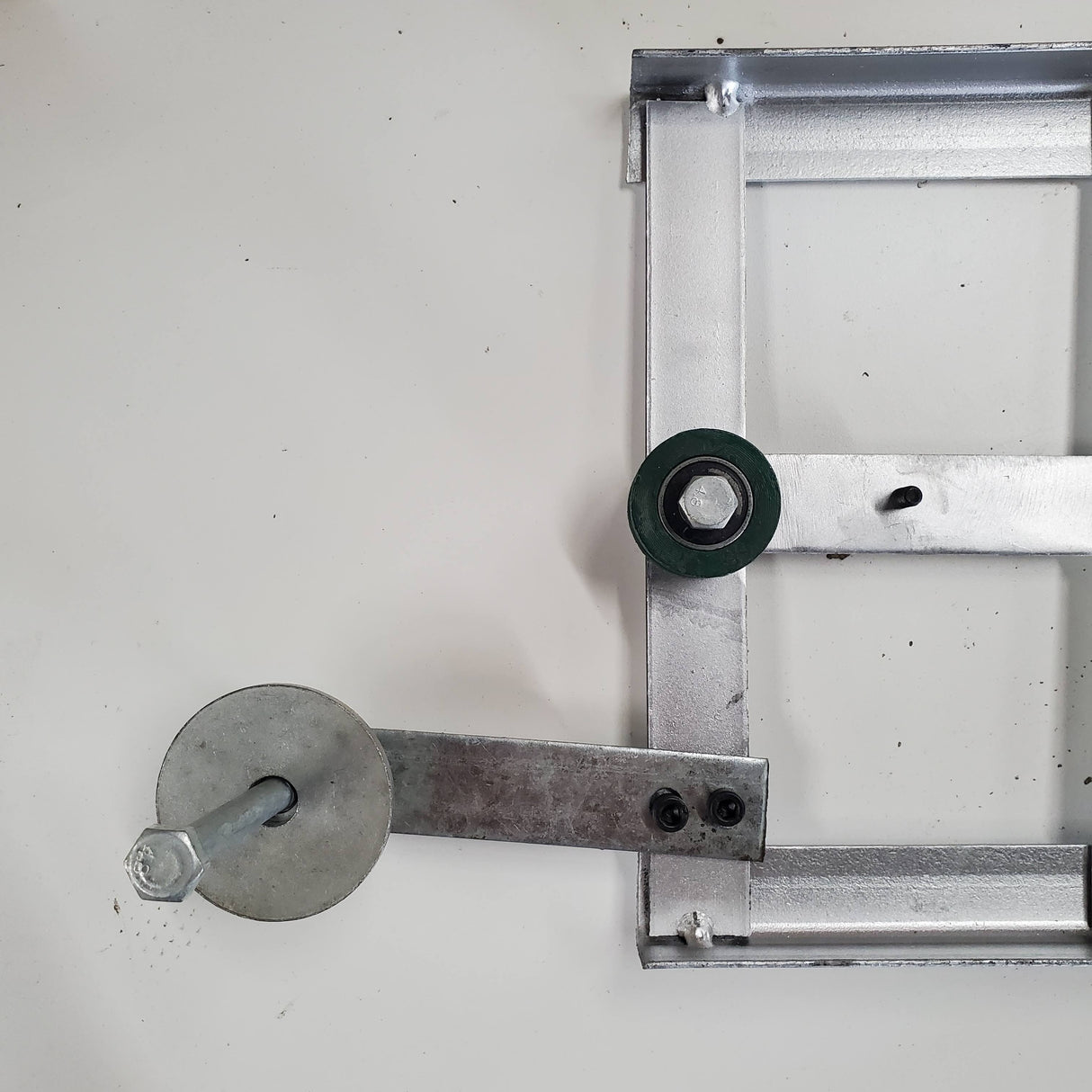

• Integrated spool holder — holds and dispenses wire smoothly as it's pulled through the frame

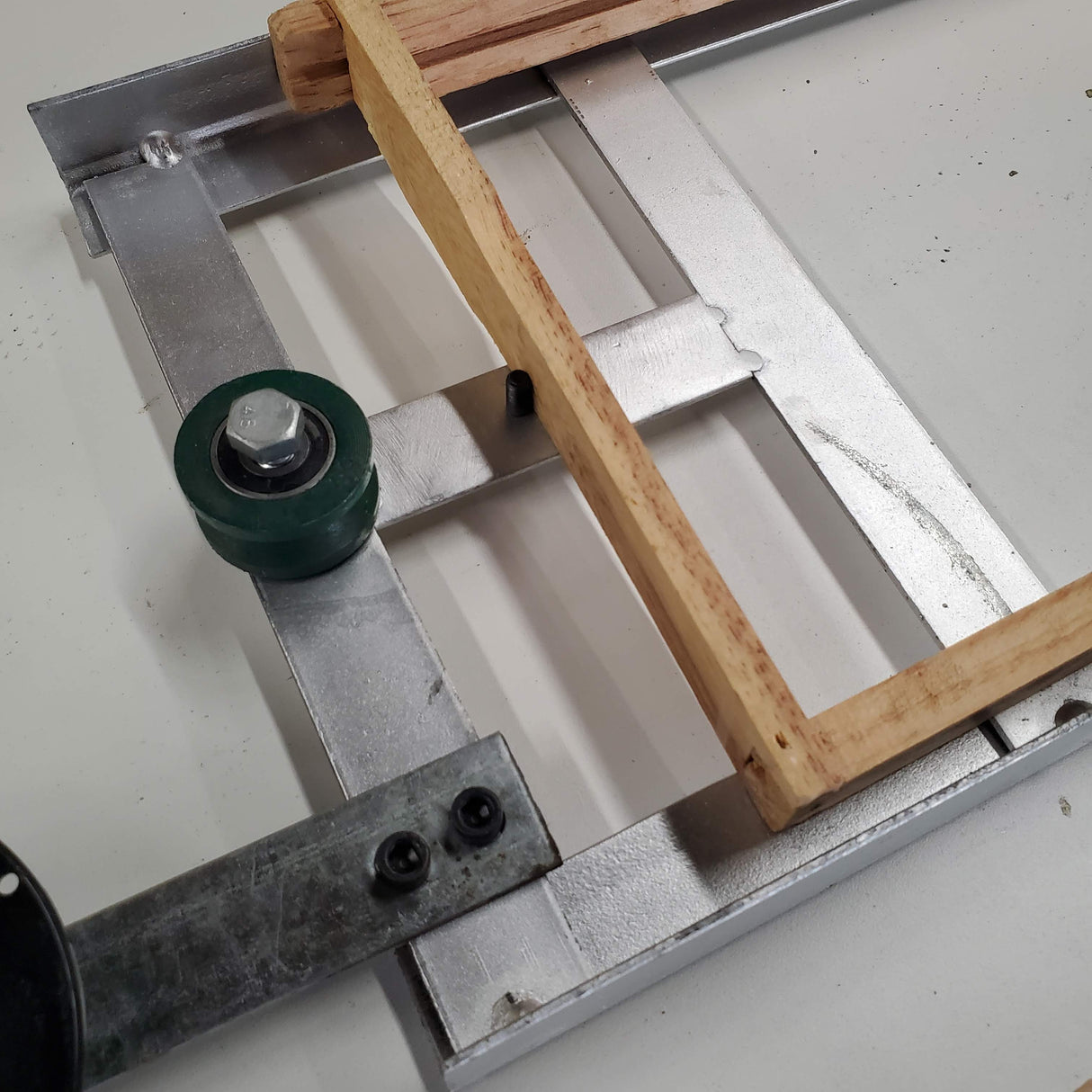

• Guide wheels manage the wire path and help maintain even tension throughout

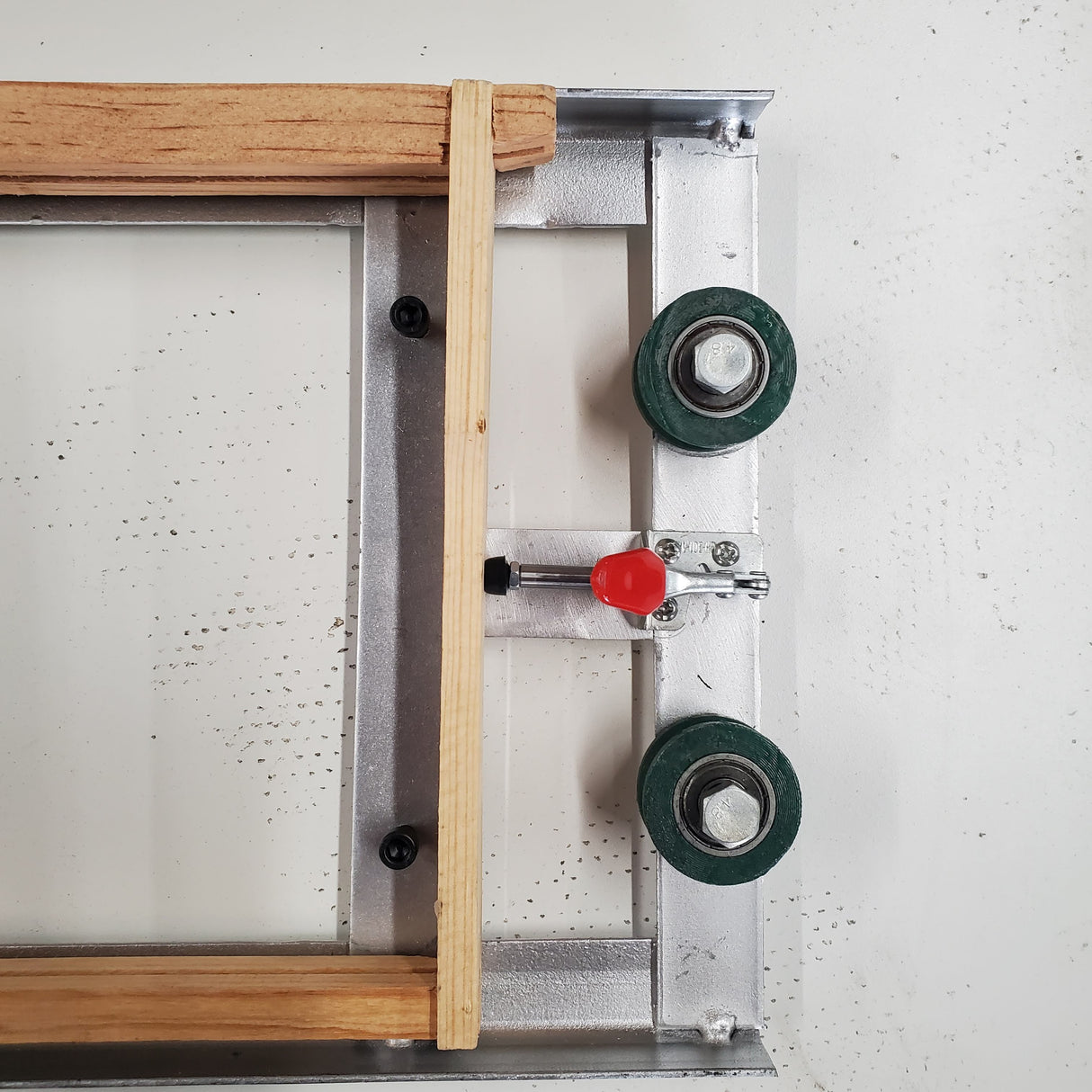

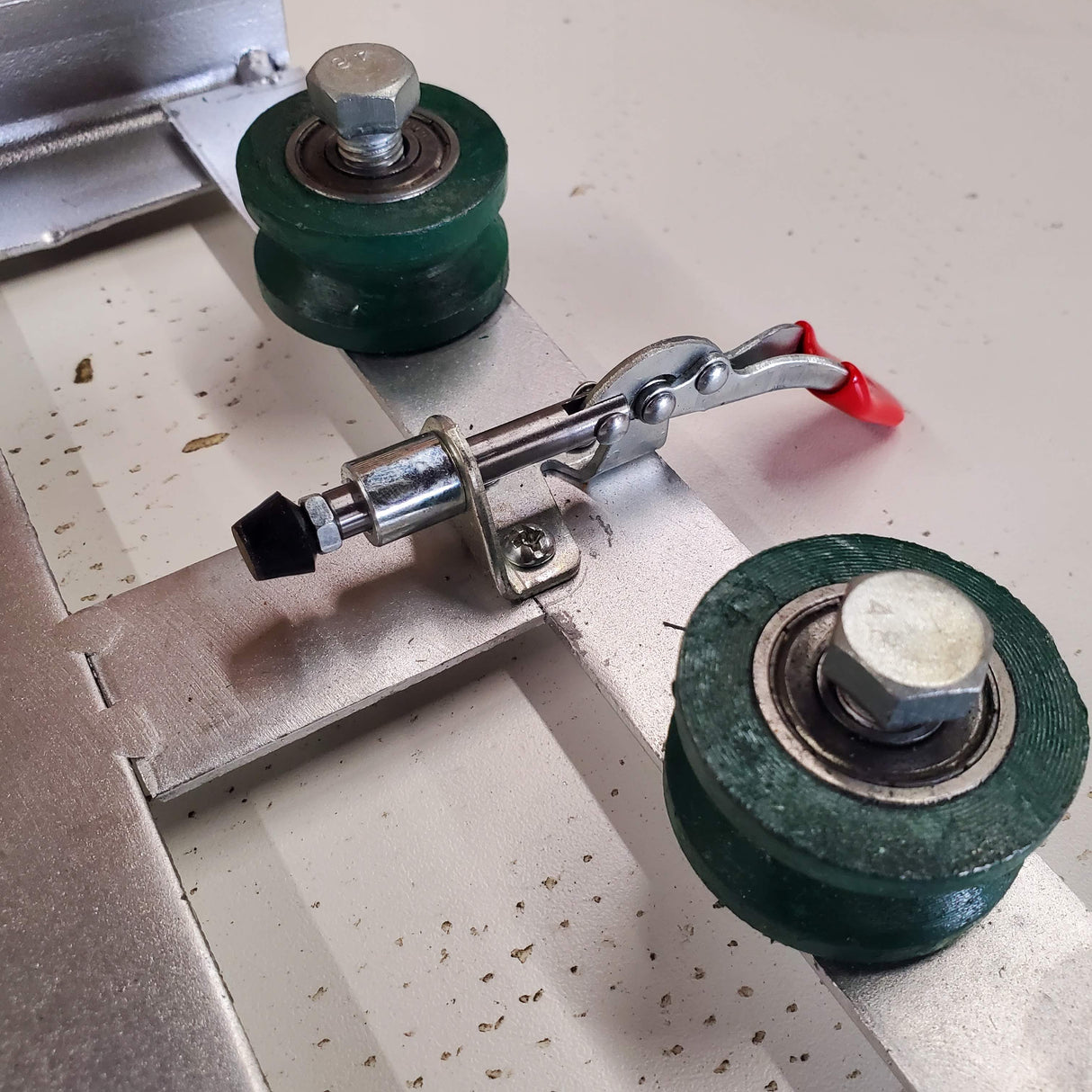

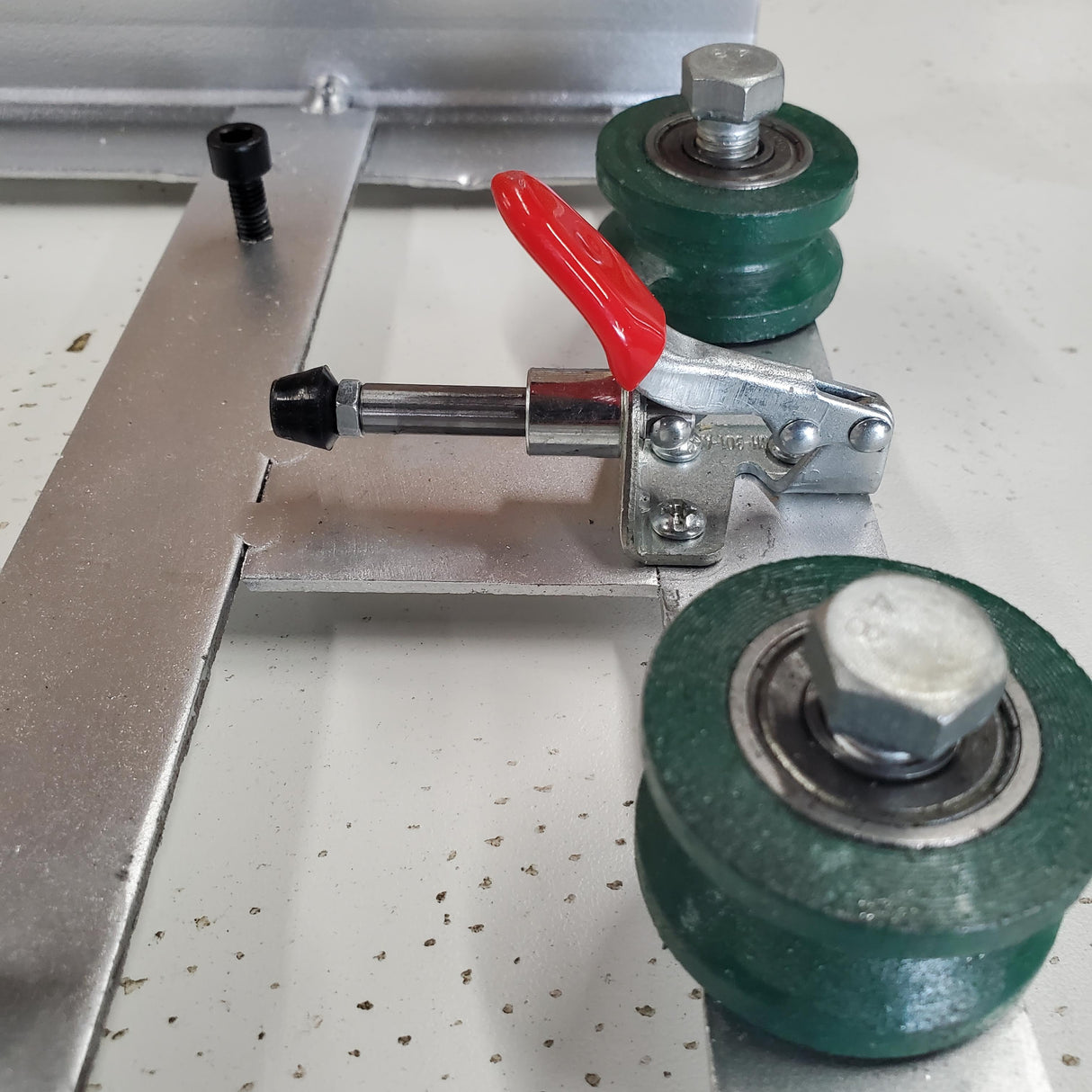

• Built-in tensioner — presses against the frame's side bar to keep wire tight as you fasten it, then releases for a final tightening pass
• Built for wiring 100% beeswax foundation frames — improves consistency over doing it by hand

How It Works

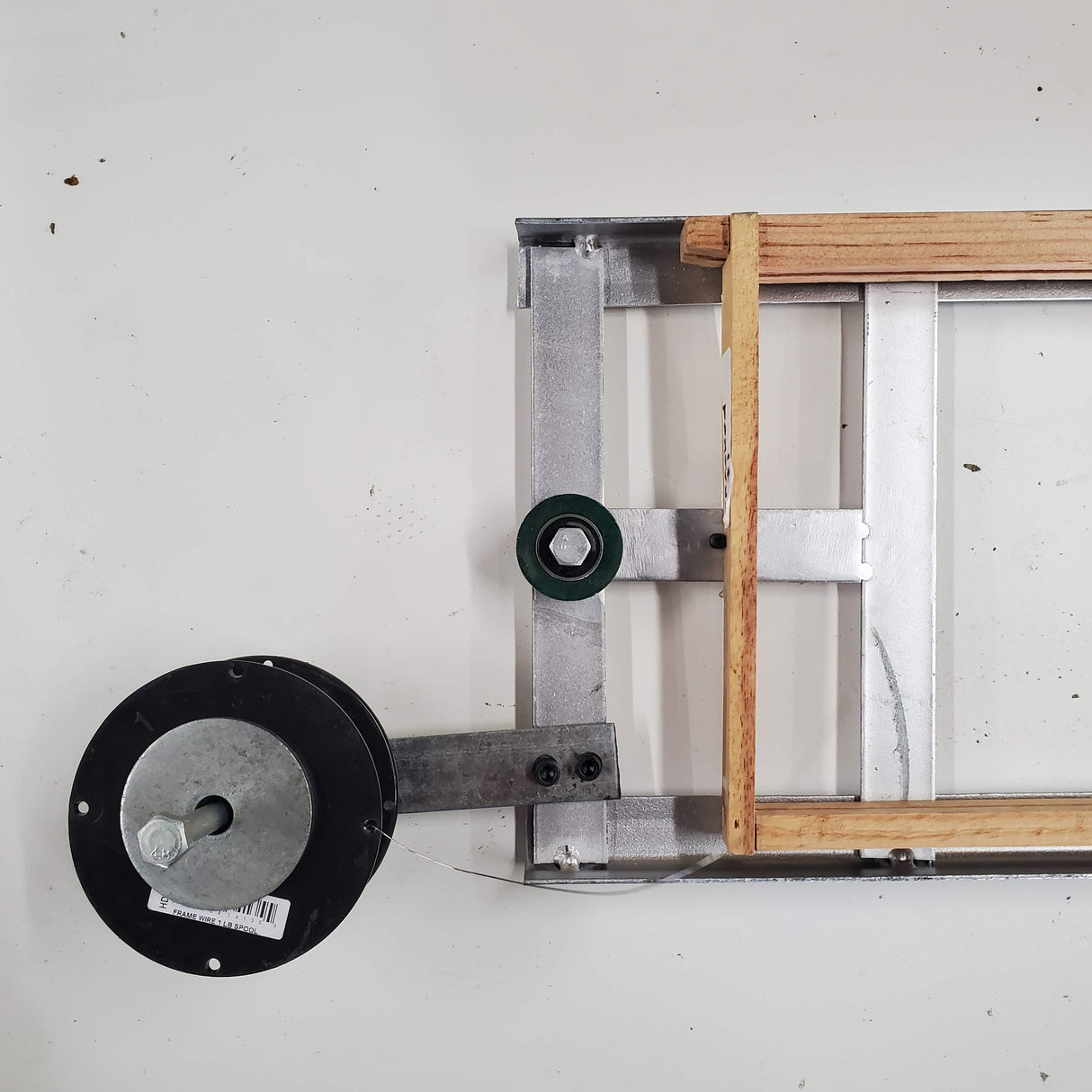

The jig holds a spool of wire and dispenses it as you pull the wire through the frame's end bar holes, guided by the wheels on the jig. Once the wire is run through and fastened to the frame, release it from the guide wheels and pull it tight. The built-in tensioner presses against the side bar during the process, then releases so you can tighten the wire further after it's fastened.

Product Details
